Atmos Giga I-IE3-VMM

In-line pump

The universal glanded pump for heating, air-conditioning and cooling applications in large buildings.

  • Universal use in different applications, with different fluids and temperatures thanks to diverse components such as impellers, motor sizes and mechanical seals
  • State-of-the-art pump hydraulics and IE3/IE4 motor technology for reliable and energy saving operation
  • Long service life thanks to corrosion-resistant cataphoretic coating of all cast components
  • Targeted discharge of condensate when used in air-conditioning systems and chillers
  • Easy installation with the possibility of securing the pump feet for maximum stability
  • Easy maintenance and user-friendly design with optional back pull-out design and cartridge mechanical seal for large pumps
  • Available with ATEX approval for use in industrial environments
Get a Quote

The universal glanded pump for heating, air-conditioning and cooling applications in large buildings.

The Wilo-Atmos GIGA-I offers a wide range of components and materials for a variety of applications, mainly in the field of building services and in industrial environments. It can pump different fluids at temperatures from -20 °C to +140 °C making it particularly suitable for air conditioning and cooling applications. Any condensate that forms can be selectively discharged via an outlet.

Equipped with state-of-the-art pump hydraulics and IE3/IE4 motors, the pump is as reliable as it is energy-efficient.

The cast components with corrosion-resistant cataphoretic coating also ensure a long service life.

Design

Glanded pump in in-line design with flange connection

Application

The pumping of heating water (in accordance with VDI 2035), chilled water and water-glycol mixtures without abrasive substances in heating, chilled water and cooling systems.

Type key

Example Atmos GIGA-I 40/160-5,5/2
I In-line pump
40 Nominal diameter DN of the pipe connection
160 Nominal impeller diameter
5.5 Rated power P2 in kW
2 Number of poles

Technical data

  • Permitted temperature range of the fluid: -20 °C to +140 °C
  • Max. ambient temperature 40 °C
  • Mechanical seal for pumping water up to Tmax = +140 °C. Up to T ≤ +40 °C, a glycol admixture of 20 % to 40 % by volume is permissible. An alternative mechanical seal must be provided for water-glycol mixtures with a glycol content of > 40% to max. 50% by volume and a fluid temperature of > +40 °C to max. +120 °C or other fluids that differ from water. When using water-glycol mixtures, the use of an S1 variant with a corresponding mechanical seal is generally recommended.
  • Mains connection 3~400 V, 50 Hz (others on request)
  • IP rating IP55
  • Nominal diameter DN 32 to DN 250
  • Standard version for operating pressure: 13 bar (up to +140 °C) / 16 bar (up to +120 °C)

Materials

  • Pump housing and lantern: Standard: EN-GJL-250;
  • Impeller: Standard: EN-GJL-200; special version: Bronze CuSn 10 stainless steel 1.4408
  • Shaft: 1.4122
  • Mechanical seal: AQEGG; other mechanical seals on request

Construction

Single-stage, low-pressure centrifugal pump in in-line design with

  • Mechanical seal
  • Flange connection with pressure measuring connection R 1/8
  • Lantern
  • Coupling
  • IEC standard motor

Scope of delivery

  • Pump
  • Installation and operating instructions

Options

  • …-L1 variant with bronze impeller (at additional charge)
  • …-L4 variant with stainless steel impeller (at additional charge)
  • …-P6 variant with back pull-out design and cartridge mechanical seal
  • …-H1 variant with housing made of ductile cast iron on request
  • …-P4 variant for max. operating pressure of 25 bar on request
  • …-P2 variant: Drinking water version on request
  • Other voltages and frequencies as well as ATEX approval on request

Additional instructions

Wilo-Atmos GIGA-I/-B, Wilo-Atmos GIGA-N

Article Number: 2243026

Issue date: 2025-02

Edition: 01

Language: en

Download
Wilo-Atmos GIGA-I/-B... ATEX, Wilo-Vero... IPL-N/DPL-N... ATEX

Article Number: 2234770

Issue date: 2025-08

Edition: 02

Language: de, en, fr, nl

Download

Consulting guide

Glanded pumps, single-stage, single-volute

Article Number:

Issue date: 2021-12

Edition: 01

Language: en

Download

Installation and operating instructions

Wilo-Atmos GIGA-I/-D/-B

Article Number: 2230371

Issue date: 2026-03-18

Edition: 03

Language: en

Download

Group Statement

Group Statement REACH

Article Number:

Issue date: 2026-04-17

Edition:

Language: language neutral

Download

Installation sheet

Wilo-Control EC-WP

Article Number:

Issue date:

Edition:

Language: language neutral

Download

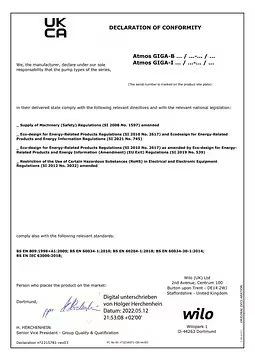

UKCA

UKCA 2215781

Article Number: 2215781

Issue date: 2022-05-23

Edition:

Language: language neutral

Download
